Cov khoom
Standard Embossed Carrier Daim kab xev

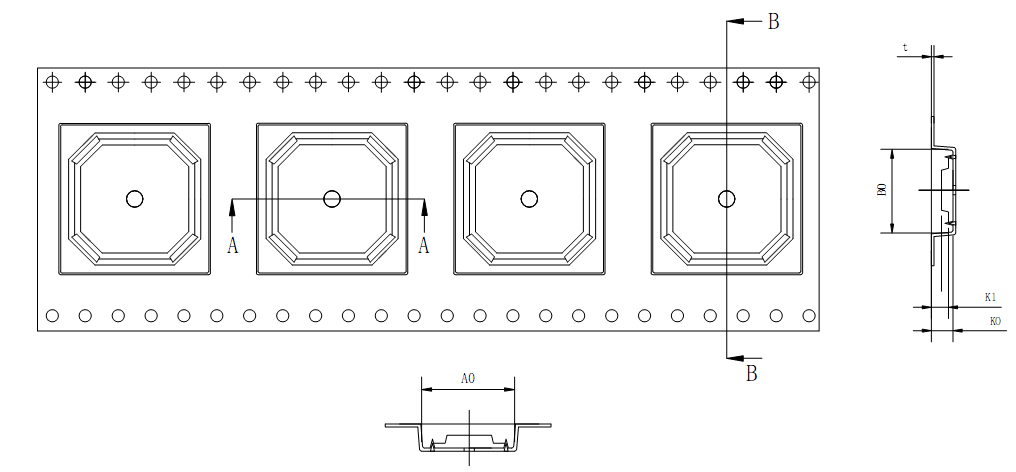

Sinho tus qauv embossed carrier daim kab xev yog tsim los ntim ntau yam khoom siv hluav taws xob thiab hluav taws xob, raws li EIA-481-D cov qauv hauv ntau qhov dav ntawm 8mm txog 200mm, thiab ntev txog 1,000 meters. Muaj ntau yam ntawm cov khoom siv,Polystyrene (PS), Polycarbonate (PC), Acrylonitrile Butadiene Styrene (ABS), Polyethylene Terephthalate (PET), txawmNtawvCov khoom siv, los tsim cov kab xev sib txawv rau ntau daim ntawv thov - xws li LED, ICs, Transistor, Liab Tuag, Inductor, PCB, Connector, Crystal Oscillator thiab lwm yam.
Peb siv rotary forming tshuab rau 8mm thiab 12mm carrier tapes, linear forming tshuab rau ua 12mm mus rau 104mm wide tapes, particle forming tshuab rau me me 8 & 12 hli carrier daim kab xev nrog siab precision kam rau ua rau loj ntim. Standard carrier daim kab xev yog muab splice-dawb nyob rau hauv ib thiab theem cua reel configurations. Tus txheej txheem reel configuration yog ib leeg-cua carrier daim kab xev ntawm 22 "inch cardboard reel. Cov qib cua hom feem ntau yog rau ntim 8mm carrier daim kab xev. Ob daim ntawv corrugated thiab corrugated yas reel flanges muaj.
Paub meej
| Tsawg hnab tshos qhov ntev ntev ntawm +/- 0.05 hli nrog lub hnab tsho hauv qab | Zoo cuam tshuam lub zog thiab ua haujlwm rau kev txhim kho cov khoom tiv thaiv | Kev xaiv dav ntawm hnab tshos tsim thiab qhov ntev kom haum rau ntau yam khoom siv hluav taws xob thiab hluav taws xob | ||
| Tshaj nrogSinho Antistatic Pressure Sensitive Cover TapesthiabSinho Thaum tshav kub kub Activated Adhesive Cover Tapesnrog zoo sealing thiab peeling kev ua tau zoo | Muaj peev xwm ua tau zoo tshaj plaws uas tsis tshua muaj nqi nqa daim kab xev rau txhua daim ntawv thov: linear & rotary forming & particle forming processing | Qhov loj me tseem ceeb raug tshuaj xyuas thiab saib xyuas ntawm lub sijhawm tsis tu ncua thiab kaw | ||
| 100% nyob rau hauv cov txheej txheem hnab tshos soj ntsuam | MOQ me me yog muaj | Ib leeg lossis theem mob rau koj xaiv |
Yam Khoom
| Hom | SINHO | |
| Xim | Dub, Ntshiab | |
| Khoom siv | PS, ABS, PC, PET, Ntawv ... | |
| Dav dav | 8 hli, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm, 104mm | |
| Pob | Standard reel configuration: Ib leeg cua ntawm 22" cardboard reel; Los yog Qib cua hom; | |
| Qhib Cov Cuab Yeej | 0402,0603, 0805, SOIC, TQFP, BGA, QFN, PLCC, SOT, TSOP, TTSOP, SSOP, TQFP, SOJ, WSON, DDPAK... |
Qhib Tooling
Cov peev txheej
| Txheej txheem ntau lawm | Cov Ntaub Ntawv Kev Nyab Xeeb Cov Ntaub Ntawv |
| Lub cev muaj zog rau cov khoom siv | Daim ntawv ceeb toom kev nyab xeeb |
